Fully auto cylinder Grooving machine for Grey board/MDF upto 3.0mm Dust Free

Fully auto cylinder Grooving machine for Grey board/MDF upto 3.0mm Dust Free

Post Press Machine

Automatic Packaging Machines

Place of Origin:

CHINA

পরিচিতিমুলক নাম:

Diamond

সাক্ষ্যদান:

ISO9000

Model Number:

PM-900A

যোগাযোগ করুন

উদ্ধৃতির জন্য আবেদন
পণ্যের বিবরণ
Machine structure:
Stainless steel
Greyboard Length:
110-950mm
Grooving accurancy:
+/-0.1mm
Grooving Angle:
80-140 degree adjustable
Grooving thickness:
300gsm-3.0mm
Grooving line:
9 lines at the same time
পেমেন্ট এবং শিপিং শর্তাবলী
Minimum Order Quantity
1 set
মূল্য
USD 26800-28800 per set
Packaging Details
Wood case of 2100x1400x1350mm, 1480kgs
Delivery Time
10-15 days
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
20 sets per month
পণ্যের বর্ণনা

This Auto grooving machine is designed for industrial cardboard, grey board, MDF grooving



It adopts auto belt feeding, auto feeding correction, auto waste collecting, high accuracy, dust free, no noise, high efficiency, energy saving and environment protection.





Fully auto cylinder Grooving machine for Grey board/MDF upto 3.0mm Dust Free 0



Features:



1, slotting effect: no edges, no dust, V groove surface smooth.
2, environmental protection and energy saving: The total power consumption 3.7kw, cardboard slotted angle materials a whole intact recoverable (recycling material under the angle to arrive tariff revenue and tool consumption), low noise.
3, the production efficiency: automatic plate feeding speed 8 hours can produce about 30,000 boxes.

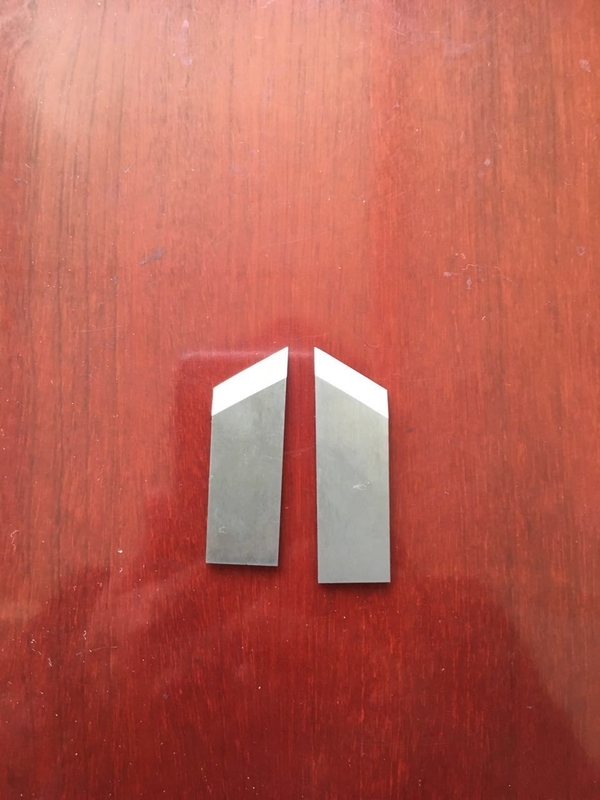

4, tool life: with a special sharpener (simple), grinding a knife just 2 minutes, customers can own sharpening.
5, the tool angle adjustable: two separate blade fixed with clamps, different angles without custom blades, can adjust itself on the machine.
6, no need to adjust the different thickness of cardboard can be slotted, easy to use.



Technical Parameters

Feeding size width

Width 50-850mm

Feeding size length

Length 110-950mm

Accuracy highest

±0.05mm

Accuracy normal

+/-0.1mm

Highest speed

30-32M/min (200x200mm) 110-120pcs/mins

Normal speed

20-25M/min(200x200mm)70-90pcs/min, 20-25m/min

Grooving angle

80-140 degree adjustable

Board thickness

300gsm-3.0mm

Grooving lines

9 lines at the same time

Total power

3.0kw

Machine size

2100x1400x1350mm

Machine weight

1480KG
