পণ্যের বিবরণ:
|
| Automatic Level: | Fully automatic | After Sale Service: | Oversea installation and training |
|---|---|---|---|
| Warranty: | 1 year | Working Speed: | 7000 pcs/hour |
| Paper Type: | Board Paper and Corrugated Paper | ||
| লক্ষণীয় করা: | Hot Foil Stamping Machine,Die Cutter Machines |
||

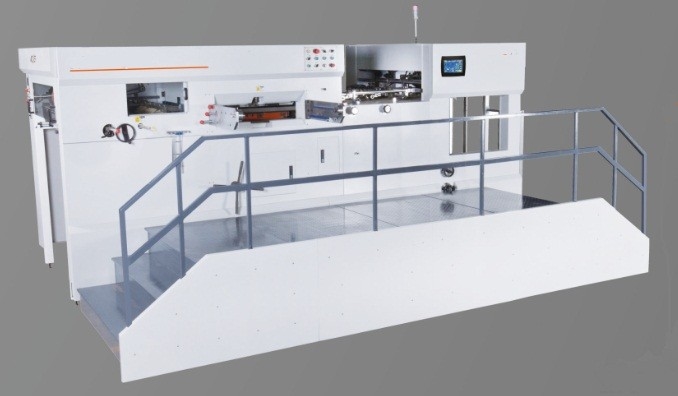

Introduction
This machine is made by professional processing with scientific structure. It is very easy ro operate. Compared to manual die cutting machine, the safety of this machine is much higher. It can be widely used in die cutting area whcih is suitable for paper board, corrugated board, pp, pvc and so on. Due to we focus on the quality of prodcut, the working life of this machine is very long.
Advantages
The device uses European technological strong suction head, 4 suction 5 feeding, with adjustable suction duct and air absorption device on both sides to ensure the feeding smoothly. Further, according to paper style and different bending parameters, it can be adjusted to get wild range of application.
High Precision Worm and Worm Wheel Device
Air lock device with middle line and Overload protection device
High sensitive air clutch and Die board turnover device
Main Parameters
| Model | Pro-ADCM1080 |
| max. paper size | 1080x780mm |
| min. papaer size | 450x400mm |
| max. cutting size | 1075x770mm |
| cutting precision | 0.125mm |
| speed | 6800 |
| total power | 17.8 |
| machine weight | 14 tons |
| external dimensions | 6800x3780x2250 |
| min. gripper size | 7mm |
